XC23

SF Model

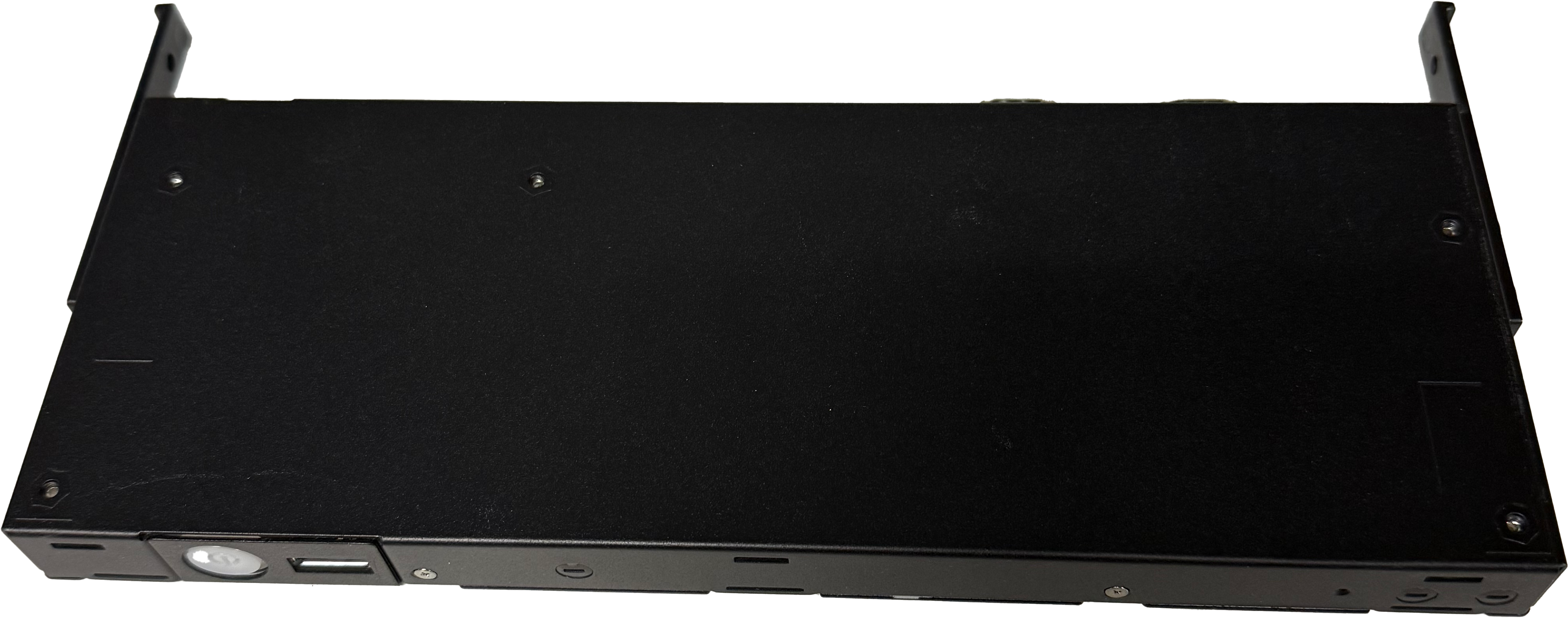

2300-PC

Processor

Elkhart Lake Celeron J6412 2.0GHz

Memory

8GB DDR4 SODIMM

Storage

128GB M.2 SSD (SATA III)

OS

Windows 10 IoT 2019 Enterprise, 64-bit; D84U Android, or Linux

External I/O Ports

2x USB3.0 Type C, 2x USB3.0, 2x USB2.0; 2x DB9 Serial Port, Powered RS232, COM1 0V*/5V, COM2 0V*/12V; 1x RJ45 LAN; 1x RJ11 Cash Drawer; 2x FeDP (optional converted HDMI output); 1x 4-PIN DIN DC Jack (with latch); optional powered USB with 1x 12V and 1x 23V.

Network Expansion

Optional; Wireless LAN and BT 4.1; WiFi 802.11 a/b/g/n/ac (dongle required)

Speaker/Audio

Yes

Power Supply

120W / 19V adapter

SF Model

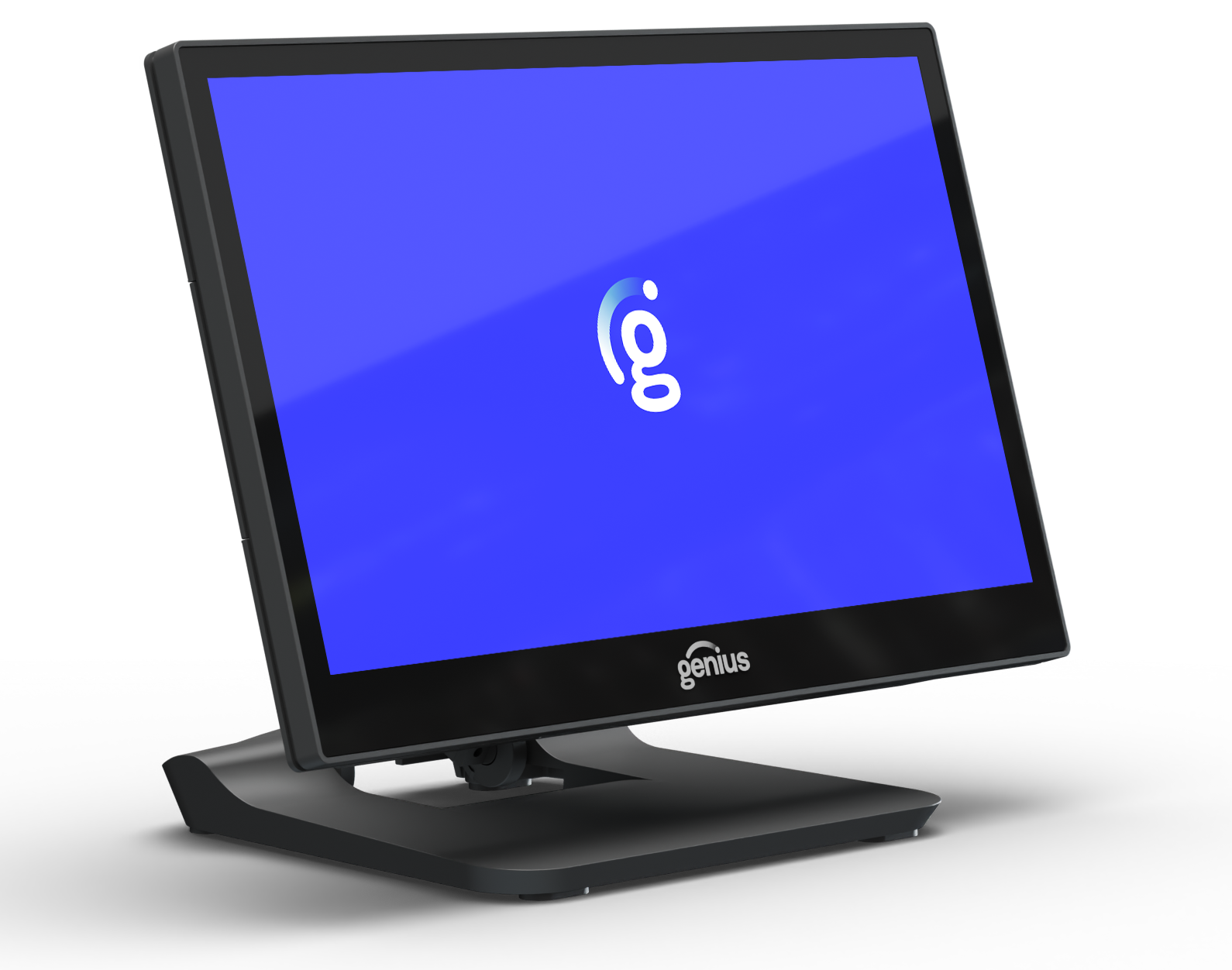

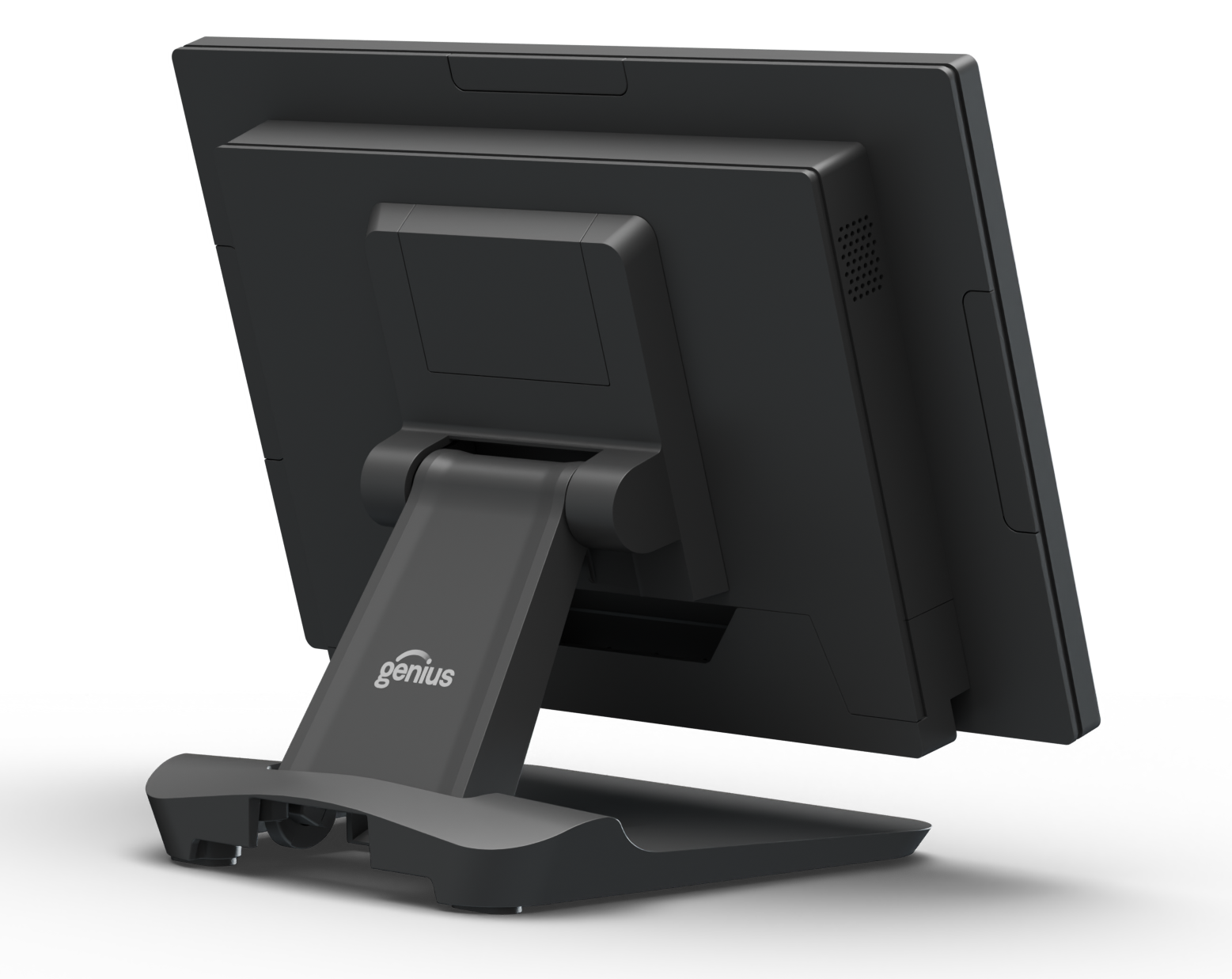

2300-TRM

LCD Panel

Size: 15.6"

Resolution: 1920 x 1080 (Full HD)

Touch Screen: True-Flat P-CAP multi-touch

Base

Foldable

Additional Options

Mount

VESA Standard; 75x75/100x100

Dimensions (WxDxH)

450-mm x 280-mm x 100-mm; 17.7-in x 11.02-in x 3.9-in

Weight

3.5-kg; 7.7-lbs

Environment

Operating Temperature: 0°C ~ 35°C; 32°F ~ 95°F

Humidity: 20% ~ 85% RH non-condensing

EMC and Safety Certificate(s)

FCC Class A; CE Mark Class A; LVD; UL

SF Model

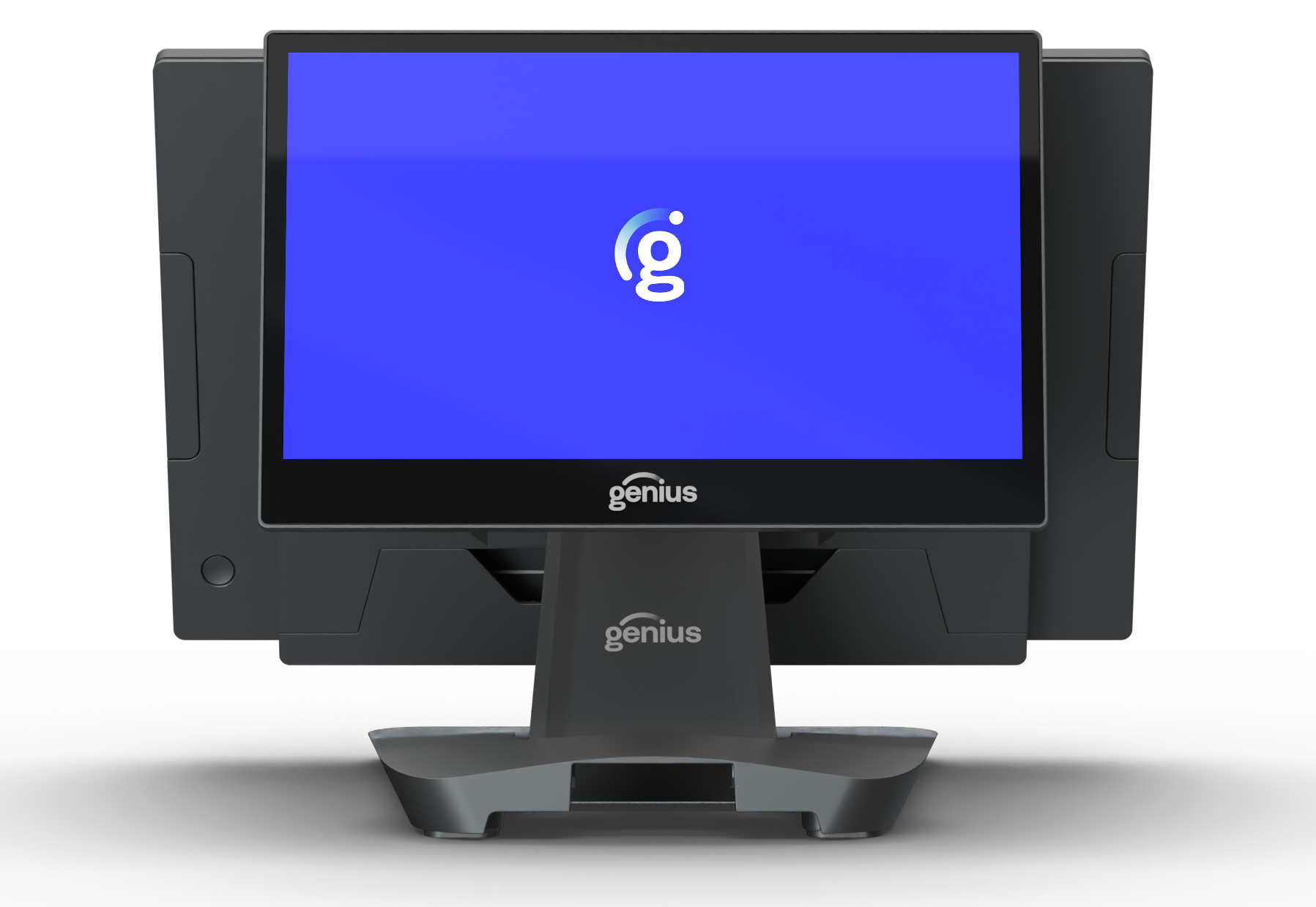

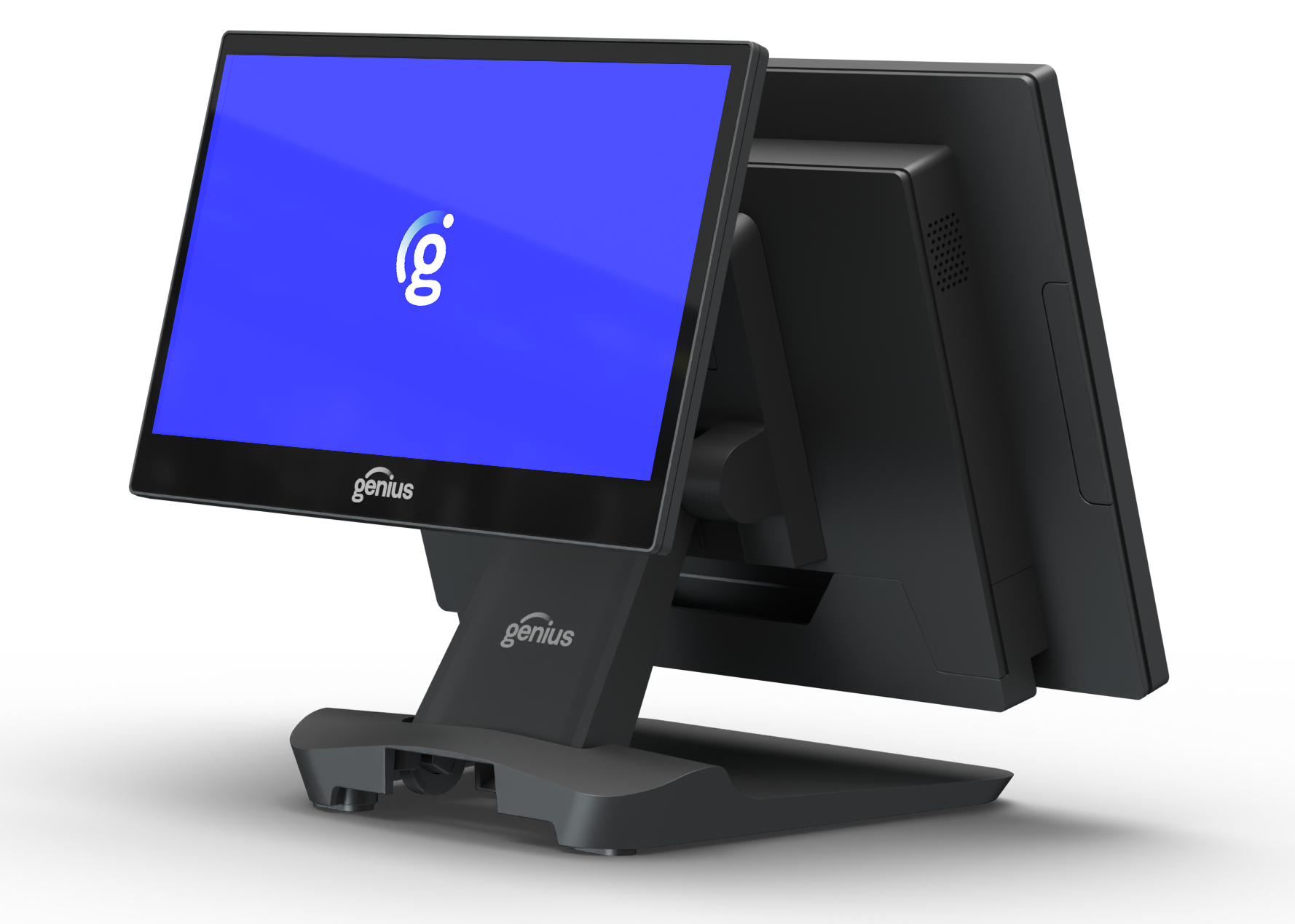

2300-OCS

LCD Panel

Size: 11.6" LED eDP

Resolution: 1920 x 1080

Brightness: 300-nits

Touch Screen: P-CAP (optional)

AD Board

Bridge Board, FeDP

Mount

75-mm x 75-mm VESA, standard

75-mm x 25-mm alternate mounting

Dimensions (WxDxH)

276.1-mm x 179.2-mm x 30.2-mm; 10.87-in x 7.06-in x 1.19-in

Weight (NW/GW)

1.5-kg; 3.3-lbs/2.0-kg; 4.4-lbs

Environment

Operating Temperature: 0°C ~ 40°C; 32°F ~ 104°F

Storage Temperature: -20°C ~ 60°C; -4°F ~ 140°F

Operating and Storage Humidity: 20% ~ 80% RH non-condensing

Sealing

IP54—front

EMC and Safety Certificate(s)

FCC Class A; CE Mark Class A; LVD

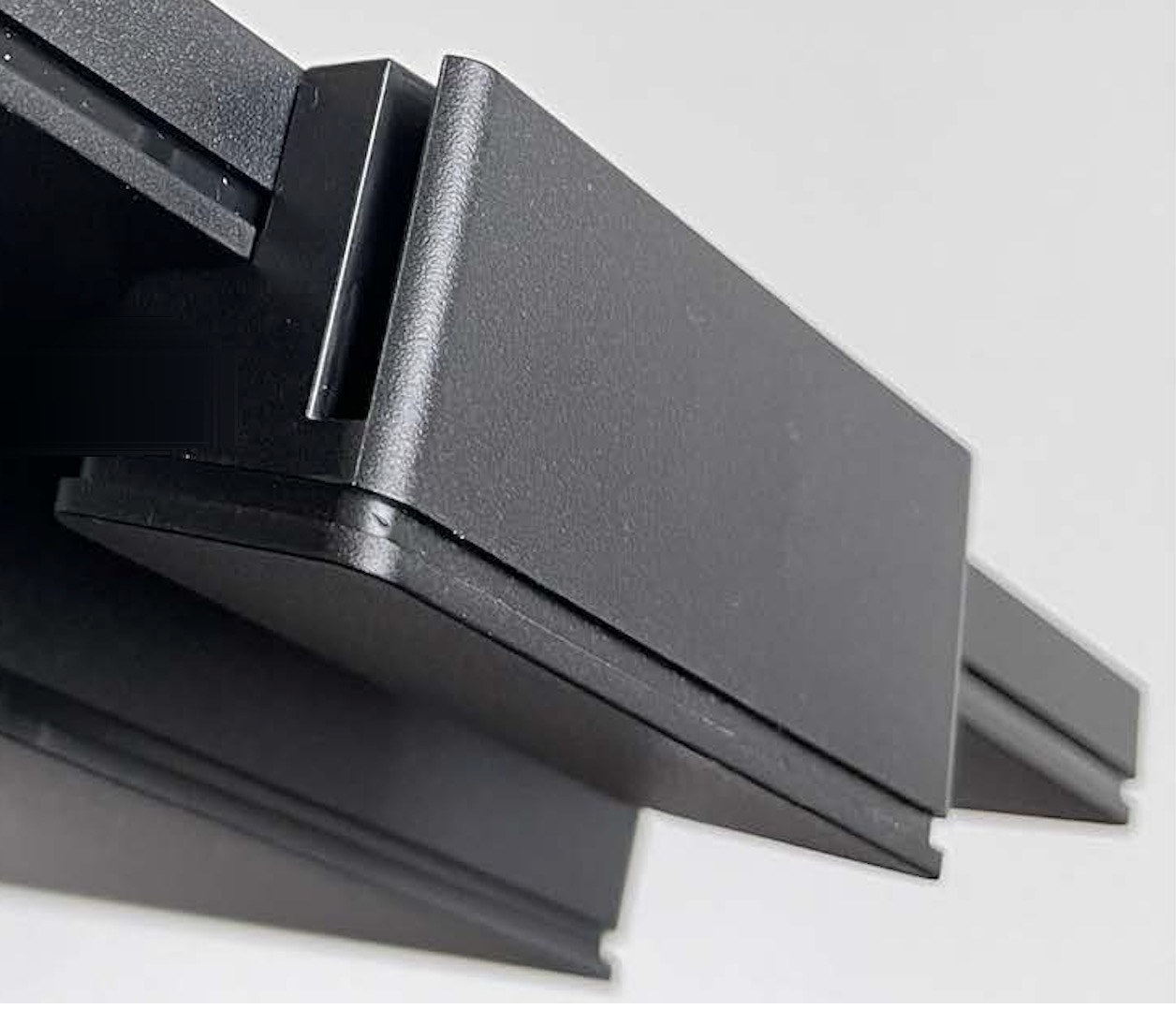

SF Model

8312065

Reader Type

Magnetic-Stripe

Connection

Micro USB

Placement

Side-attached to XC23 display

SF Model

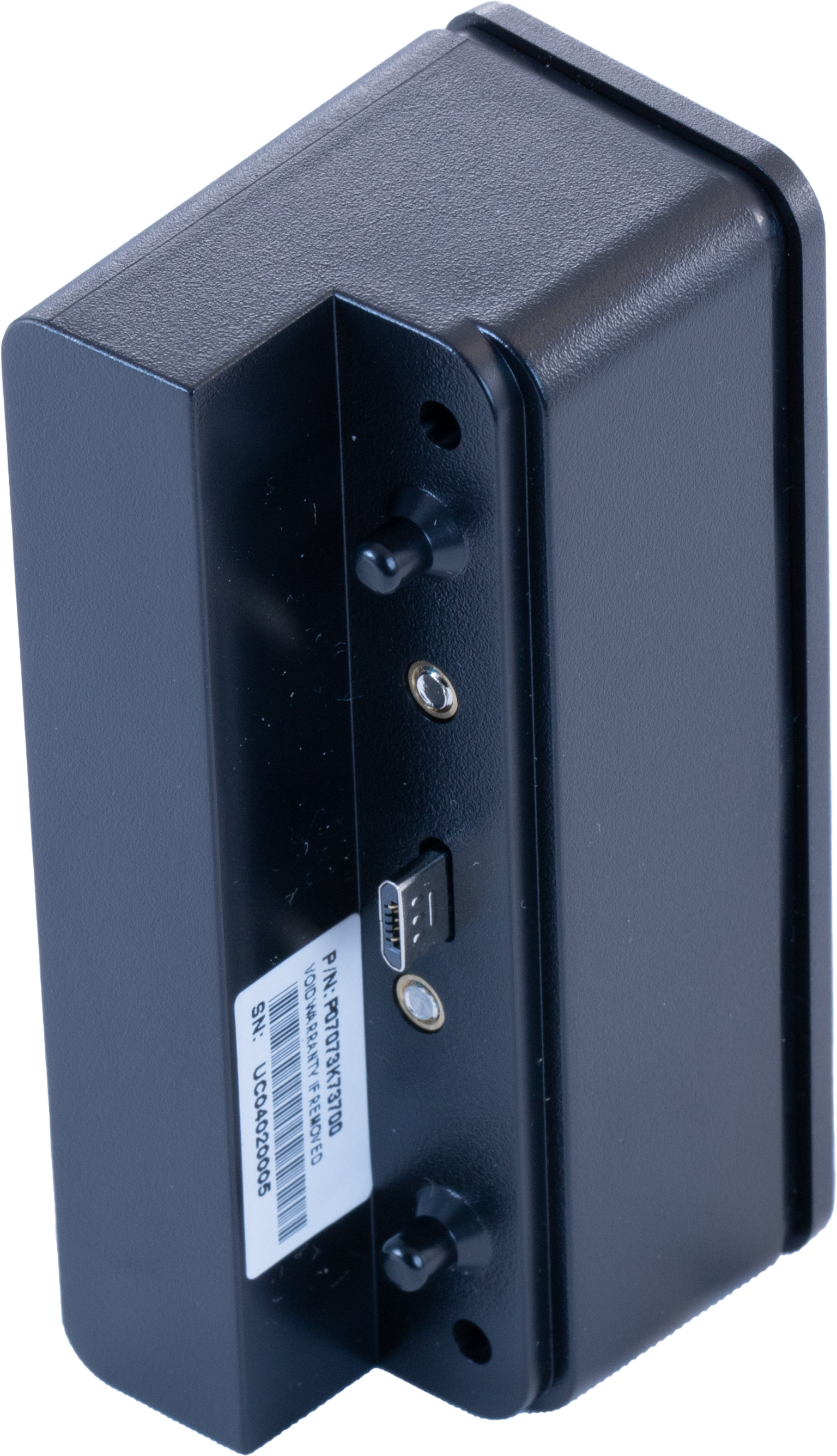

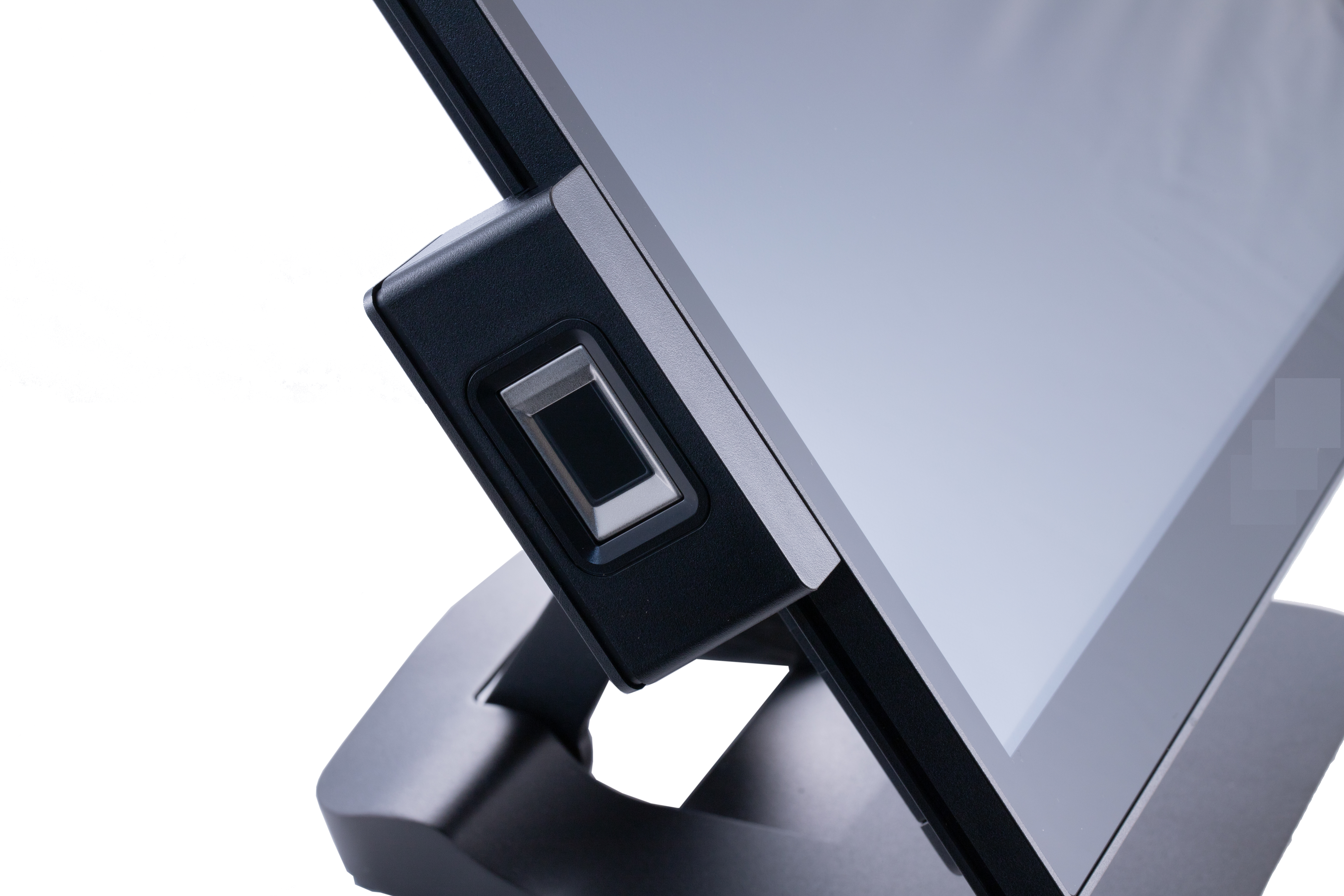

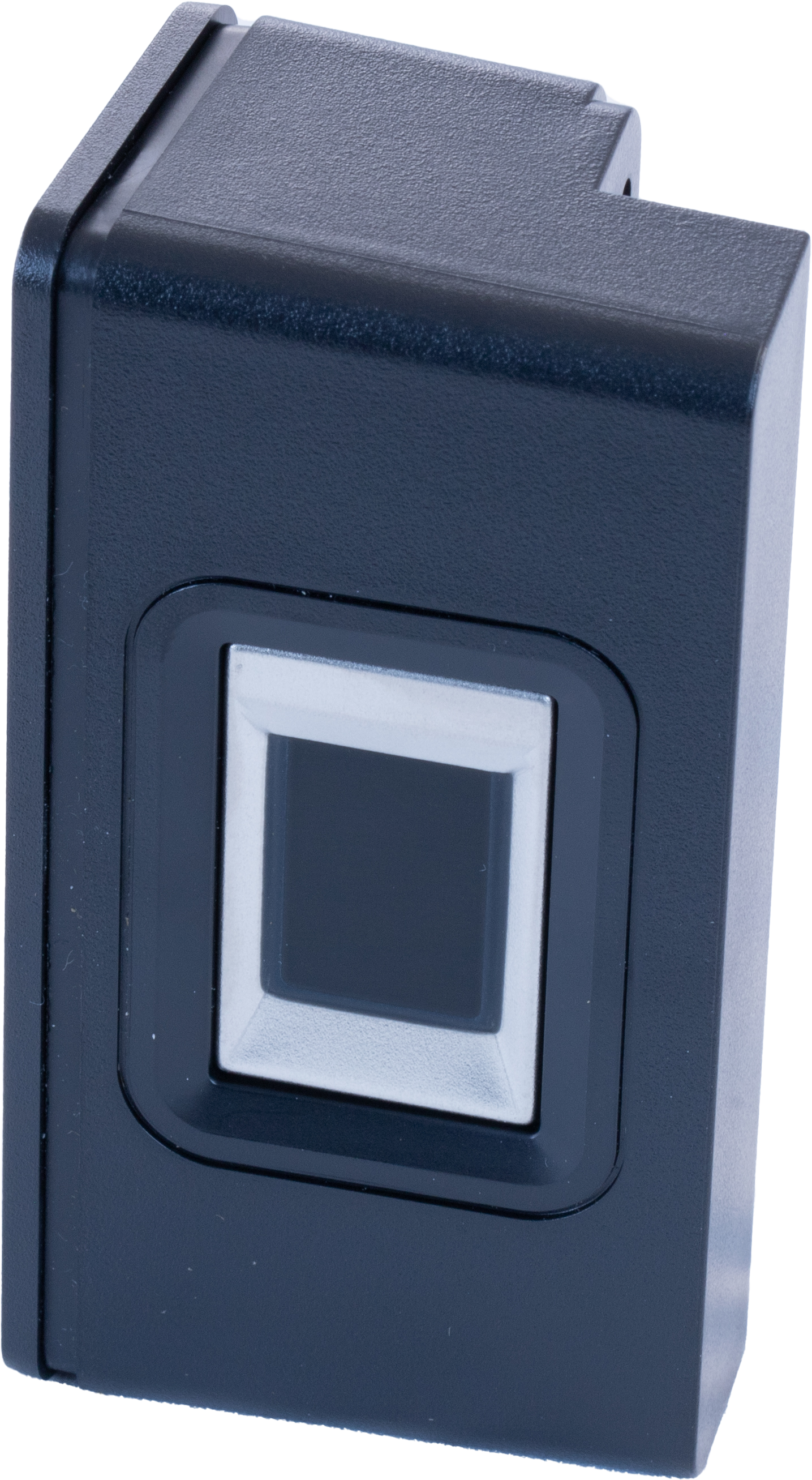

2300-BIO

Type

Biometric

Connection

Micro USB

Placement

Side-attached to XC23 display

SF Model

2300-03

Power Supply

120W / 19V adapter
